BIM 3D Layout for Hilti Construction Layout
New productItem #r18168513
Software add-on module for working with IFC 3D models directly in Hilti Construction Layout on PLC tablets
- Supported operating system: Windows 10
- System requirements: As per host system
- Security and authorizations: Hilti-signed software, User-based login information
Share
Highlights
- The fastest way to transfer the BIM 3D model to reality

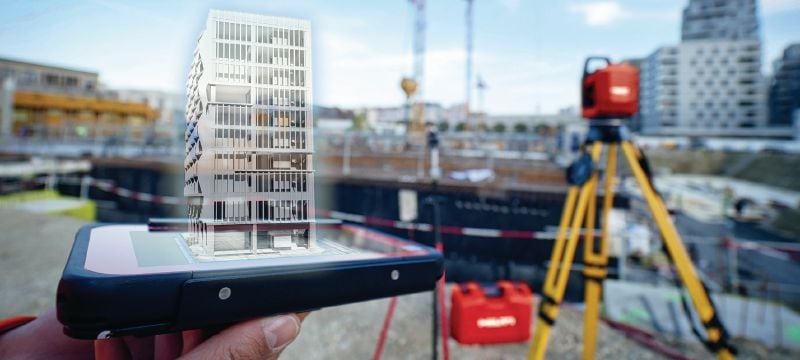

- No need to create points or lines – just import, select what you need to lay out, and go. This software add-on means you can access all 3D information directly from the controller (PLC 400/600 tablet) of a Hilti layout tool.
- Easily lay out corners, edges and surfaces using one of the most intuitive digital solutions
- With this software module you can select corner points or edges within the 3D Model and lay them out in position and height.
- No CAD data preparation needed
- Avoid the delays and costs associated with requesting 2D CAD files from your Designer or Architect. With this BIM software module, you can work with the 3D file in the field without any file prep beforehand.
