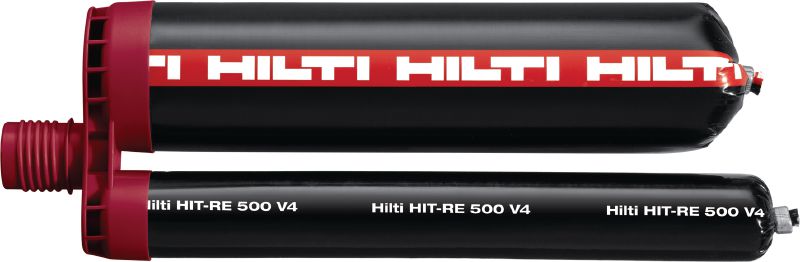

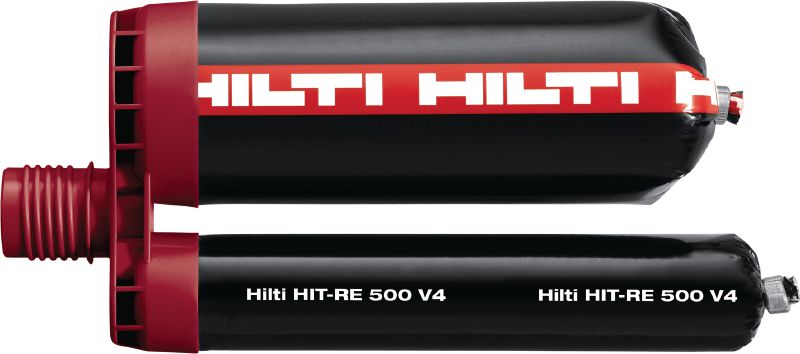

HIT-RE 500 V4 Epoxy anchor
New productItem #r12560055
Ultimate-performance injectable epoxy mortar with approvals for reinforcing bar connections and heavy-duty anchoring
- Approvals / test reports: ETA, Fire
- Seismic loading: Yes
- Fatigue loading: Yes
Share
Features & Applications
Features & Applications
Features
- Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for reinforcing bar inc. fire and seismic
- The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069
- Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes (depending on rod specification and approvals), extremely deep injections, large diameters and at temperatures down to -5°C/23°F
- Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
- Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method
Applications

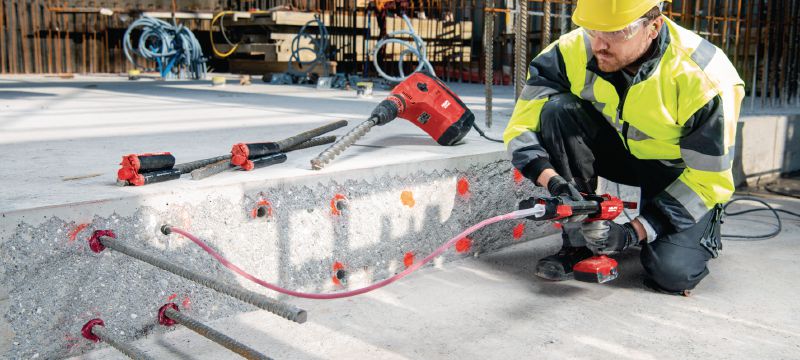

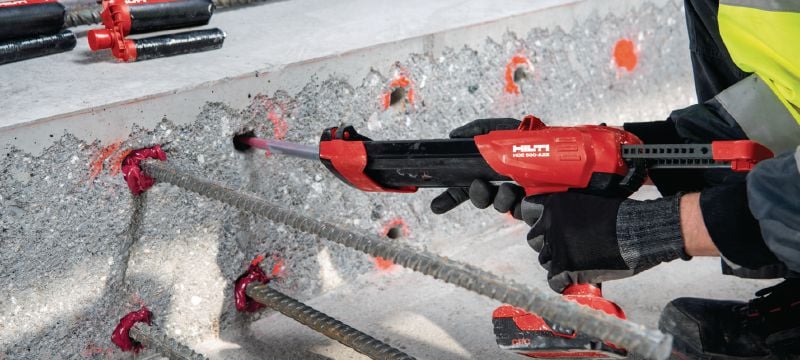

- Structural connections with post-installed reinforcing bar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
- Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
- Anchoring structural steel connections (e.g. steel columns, beams, etc.)

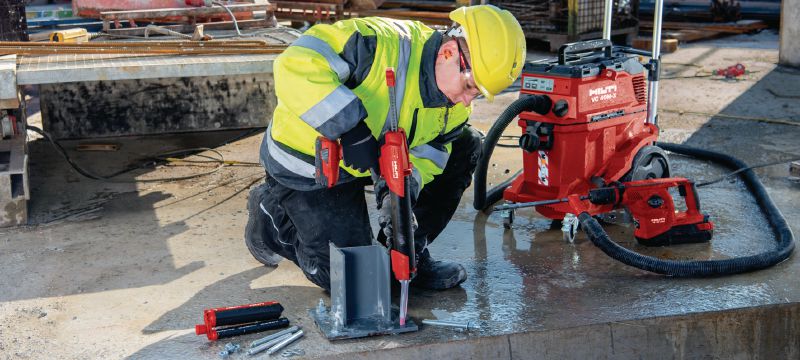

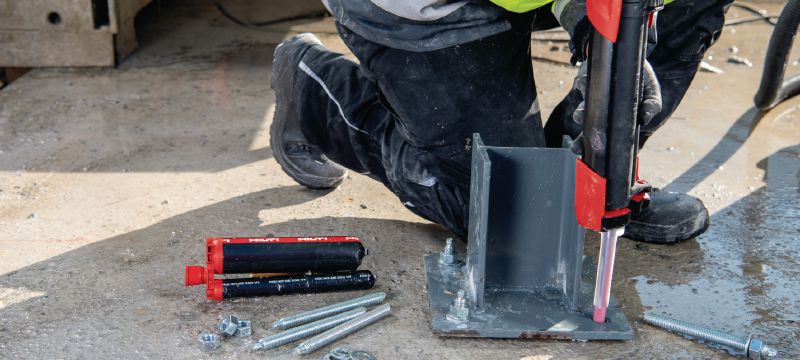

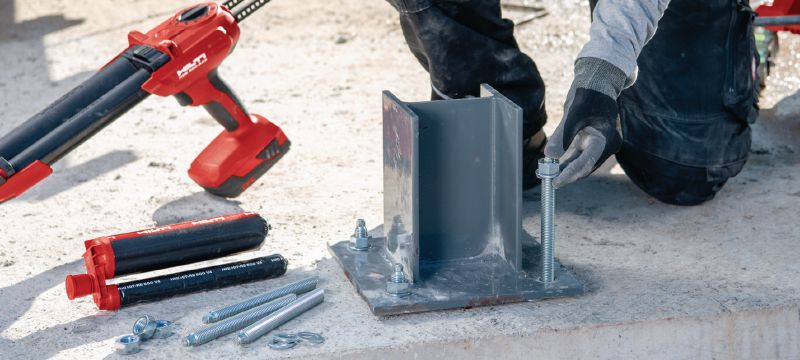

- Fastening structural baseplates, including in cracked concrete and challenging seismic conditions

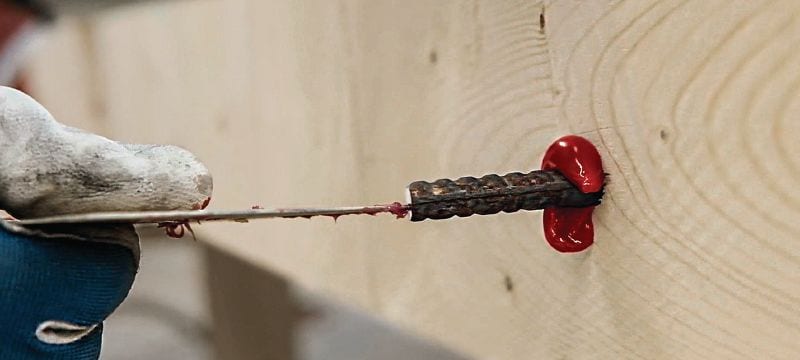

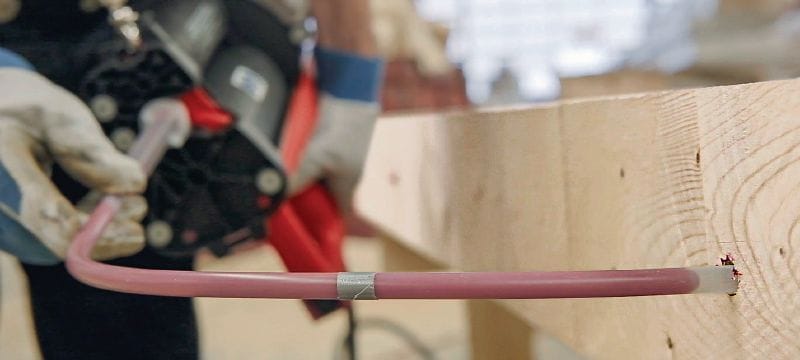

- Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir
For approval or certificate information, please see individual items.
