MQT Beam clamp
New productItem #r2494

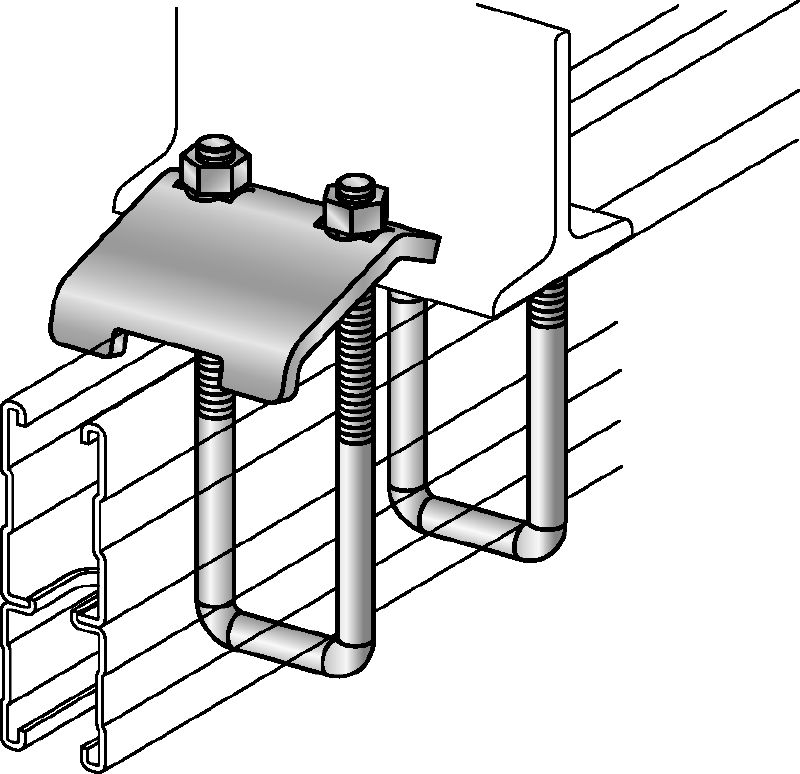

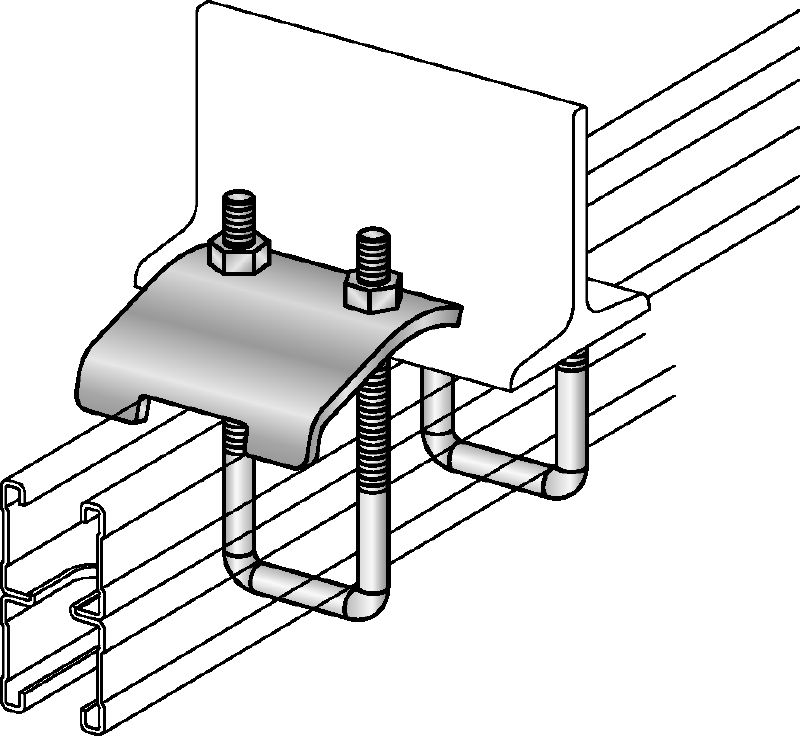

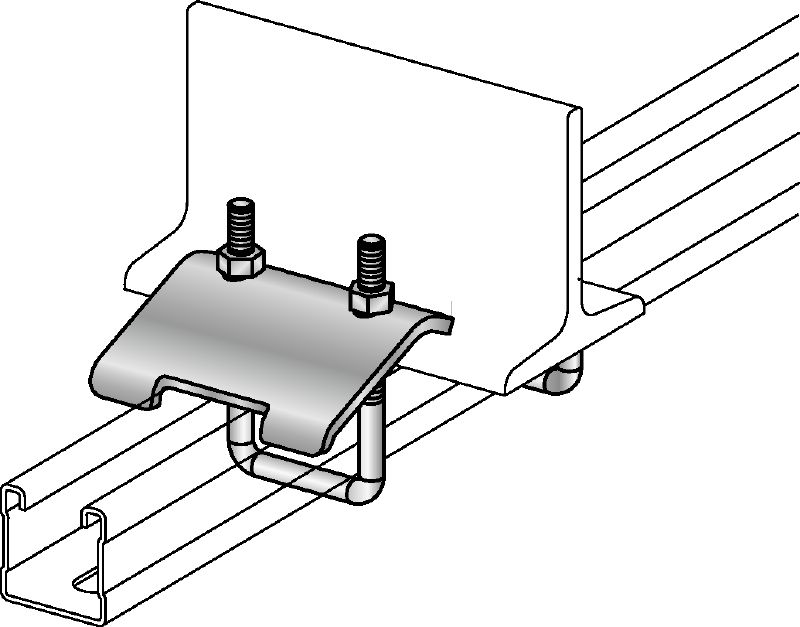

Galvanised beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
- Surface finish: Indoor Coated - Electro galvanised
- Material thickness: 8 mm
Share
Features & Applications
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
- Versatile, no small parts to lose
- The attachment fits all standard beams (max. clamping thickness = 23 mm)
- Quick installation
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
- For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)
