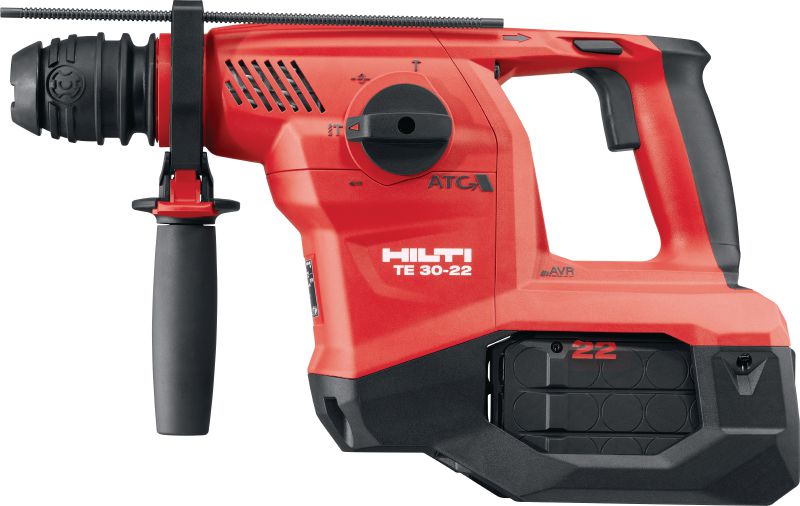

TE 30-22 cordless rotary hammer
New productItem #r10481228
Powerful cordless SDS Plus (TE-C) rotary hammer with Active Vibration Reduction and Active Torque Control for concrete drilling and chiseling (Nuron battery platform)
- Weight according EPTA-Procedure 01/2003 without battery: 3.9 kg
- Optimum hammer drilling range: 10 - 25 mm
- Single impact energy: 3.8 J
Share
Features & Applications
Features & Applications
Features
- Our most powerful SDS Plus cordless rotary hammer drill ever, still weighing just 5.1 kg (including B 22-170 battery)
- Exceptional drilling speed – drills through reinforcing bar up to 200% faster than predecessors
- More run time per charge – drills up to twice as long as comparable SDS Plus rotary hammers thanks to the combination of brushless motor and revolutionary Nuron batteries
- Versatility – with a wider optimal drilling range and extensive range of chisel bits and hole saws available, TE 30-22 is an extremely versatile tool with a wide range of capabilities for any jobsite
- Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams
Applications

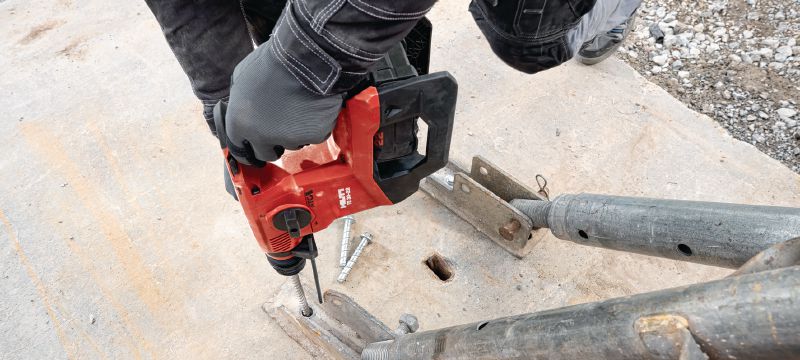

- Drilling anchor holes in concrete and masonry (recommended diameter range 10-28 mm)
- Drilling holes for reinforcing bar doweling
- Virtually dust-free drilling (TE DRS-C or TE DRS-D vacuum cleaner connector required)
- light-duty chiseling – such as tile scraping, channel cleaning and surface correction
- Occasional drilling in wood and steel (optional quick-release chuck required)
