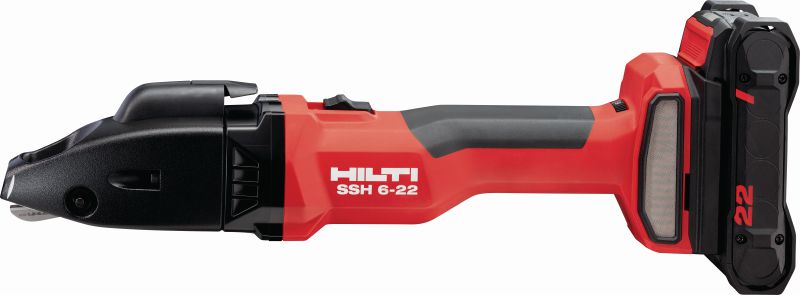

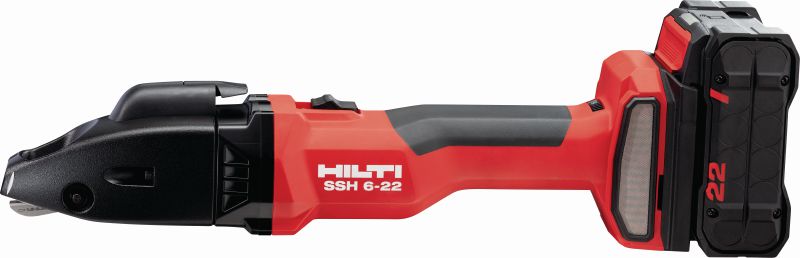

SSH 6-22 cordless metal shears
New productItem #r13250336
Cordless double cut shear for fast cuts in sheet metal and profiles up to 2.5 mm│12 Gauge – with Hilti SSH CS blades included (Nuron battery platform)
- Material type: Flat sheet, C.L.U. profile
- Rated voltage: 21.6 V
- Tool body weight: 2.2 kg
Share
Features
- Ultimate versatility – high cutting capacity, five different blade types and adjustable speed make this cordless shears perfect for virtually all everyday metal cutting
- Agile handling – slim, ergonomic grip, balanced body and lock-on switch offer more precision and comfort when cutting metal for extended periods
- Integrated chip clipper – easily stop the cut anywhere and clear the chip with one hand
- Faster blade changes – no spanner required to exchange cutters
- On the Nuron battery platform – cordless metalworking tools without compromise thanks to longer-lasting batteries, a powerful brushless motor and a range of services to keep you productive, today and tomorrow
Applications
- Cutting mild or galvanised steel sheet and profiles up to 2.5 mm thick – Hilti SSH CS blades recommended (multiple versions available)
- Cutting stainless steel sheet and profiles up to 1.5 mm thick – Hilti SSH CX blades recommended
- Cutting HVAC spiral and ventilation duct up to 4x 0.9 mm – Hilti SSH CD blades recommended
- Cutting tighter radius curves or circles in sheet metal up to 1.5 mm thick – Hilti SSH CC blades recommended
- Metal fabrication, building envelope, interior finishing or MEP installation tasks requiring quick and distortion-free cuts
Technical Data
Documents
-
- Operating Instruction SSH 6-22 (02), Chinese (traditional), Italian, Serbian, German, Turkish, Russia, Swedish, Ukrainian, Arabic, French, Portuguese, Spanish, Norwegian, Finish, Polish, Lithuanian, Latvian, Romanian, Bulgarian, Korean, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 4.2 MB ]
