HOW SAFESET IMPROVES REBAR INSTALLATIONS
Fully approved, safer and more productive installations at your jobsite
SafeSet is the Hilti system for setting anchors and post-installed rebar connections.
SafeSet helps ensure that anchors can carry their maximum load values safely, minimising the risk of anchor failure. It’s designed to speed up the installation of anchors and rebar connections and to make them safer and more reliable.
All SafeSet components are covered by international approvals and work seamlessly as a system. SafeSet meets the requirements of Standards Australia SA TS 101:2015 referenced in the National Construction Code (NCC).
QUICK LINKS
HAMMER-DRILLED HOLES
AUTOMATIC CLEANING
Eliminate extra steps with our hollow drill bits

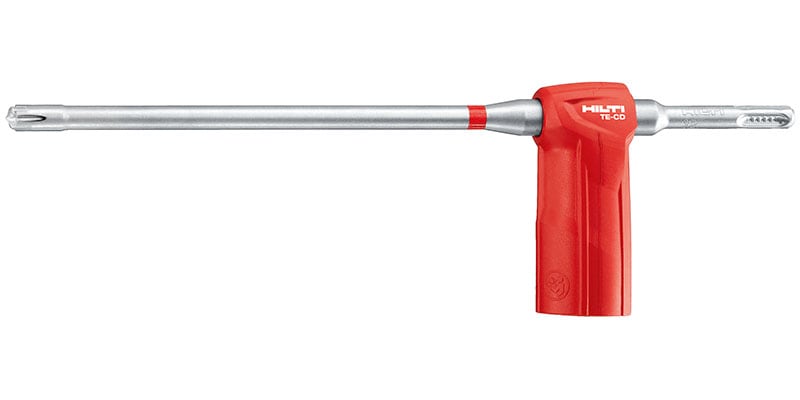

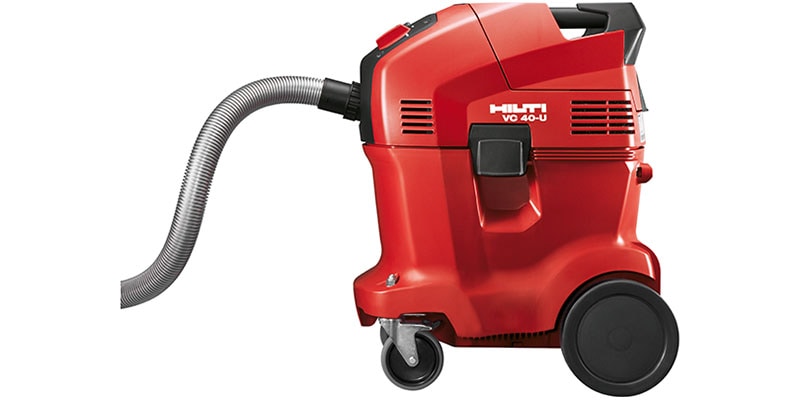

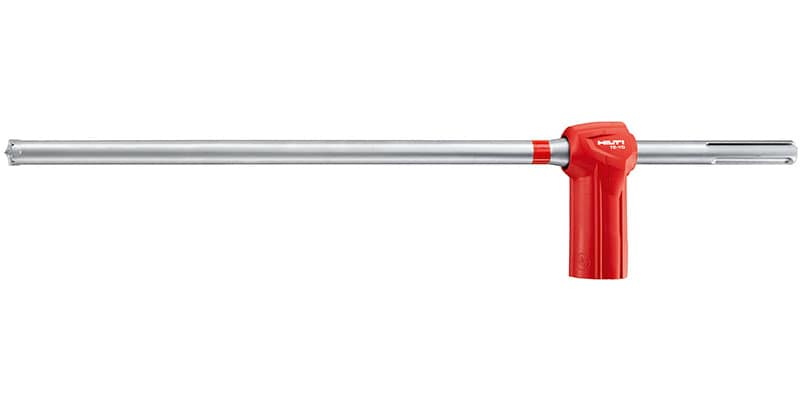

Clean holes as you drill with our TE-CD (SDS-Plus) or TE-YD (SDS-Max) hollow drill bits connected to the VC 20/40 concrete dust vacuum system and eliminate six manual steps as the dust is removed automatically while drilling is in progress.
Just drill the hole, inject the adhesive and set the anchor.

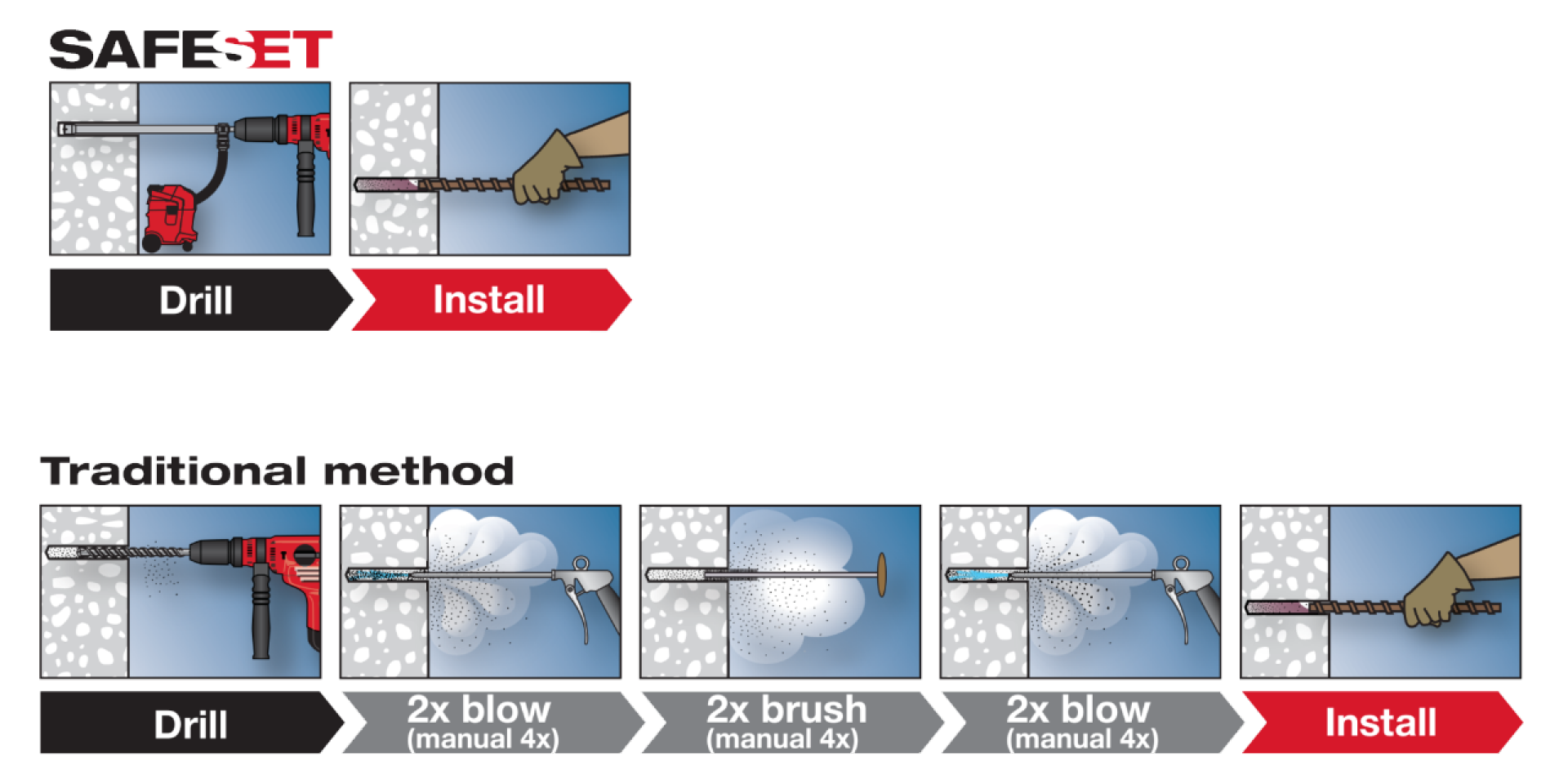

SafeSet Method vs. Traditional Method

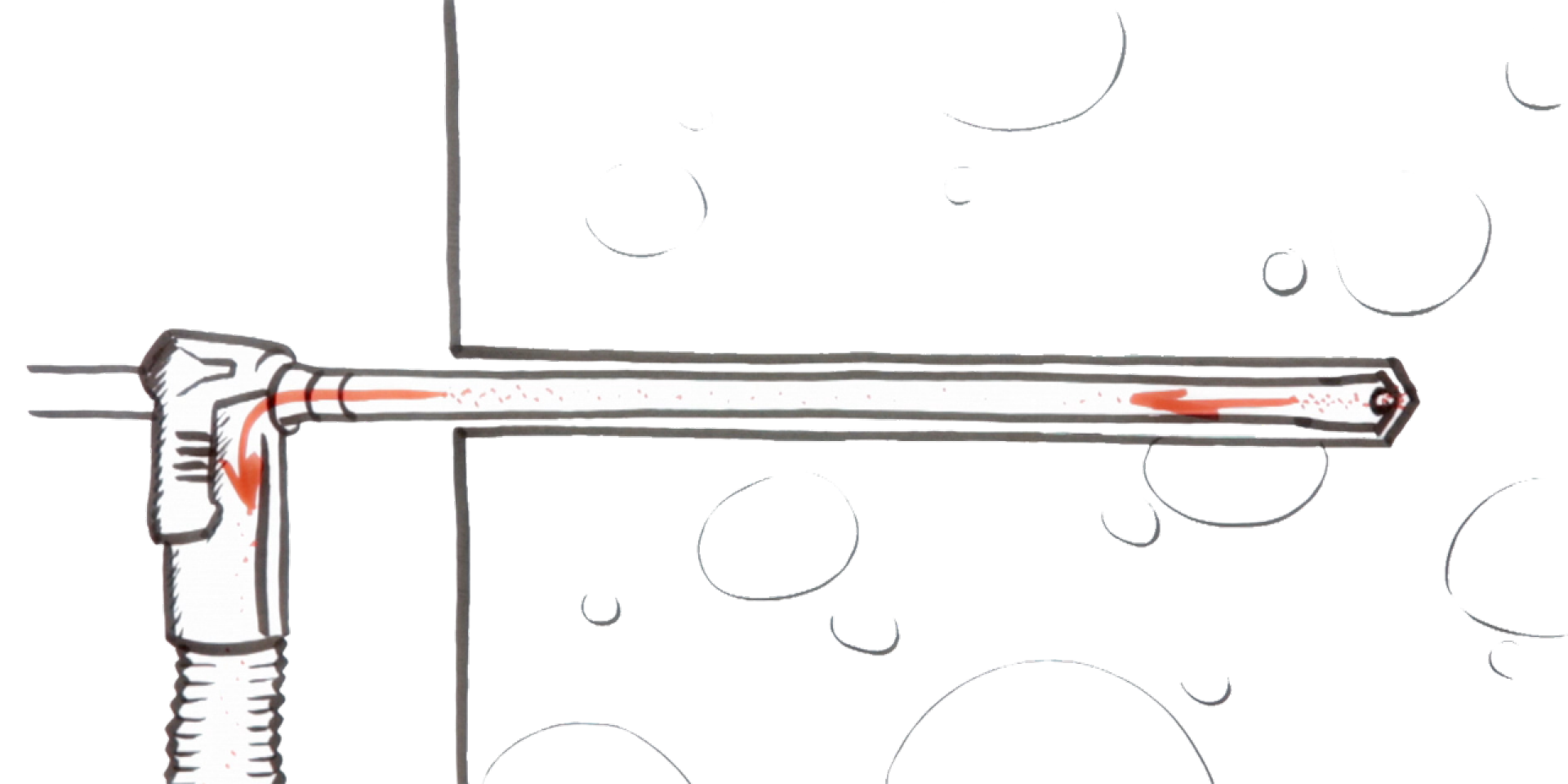

Automatic cleaning with our hollow drill-bit
DIAMOND-DRILLED HOLEs
Save time and achieve a better bond
Raise bond strength with our roughening tool
The Hilti TE-YRT roughening tool is designed to roughen a diamond-drilled hole in order to achieve the necessary bond between the epoxy and the concrete.

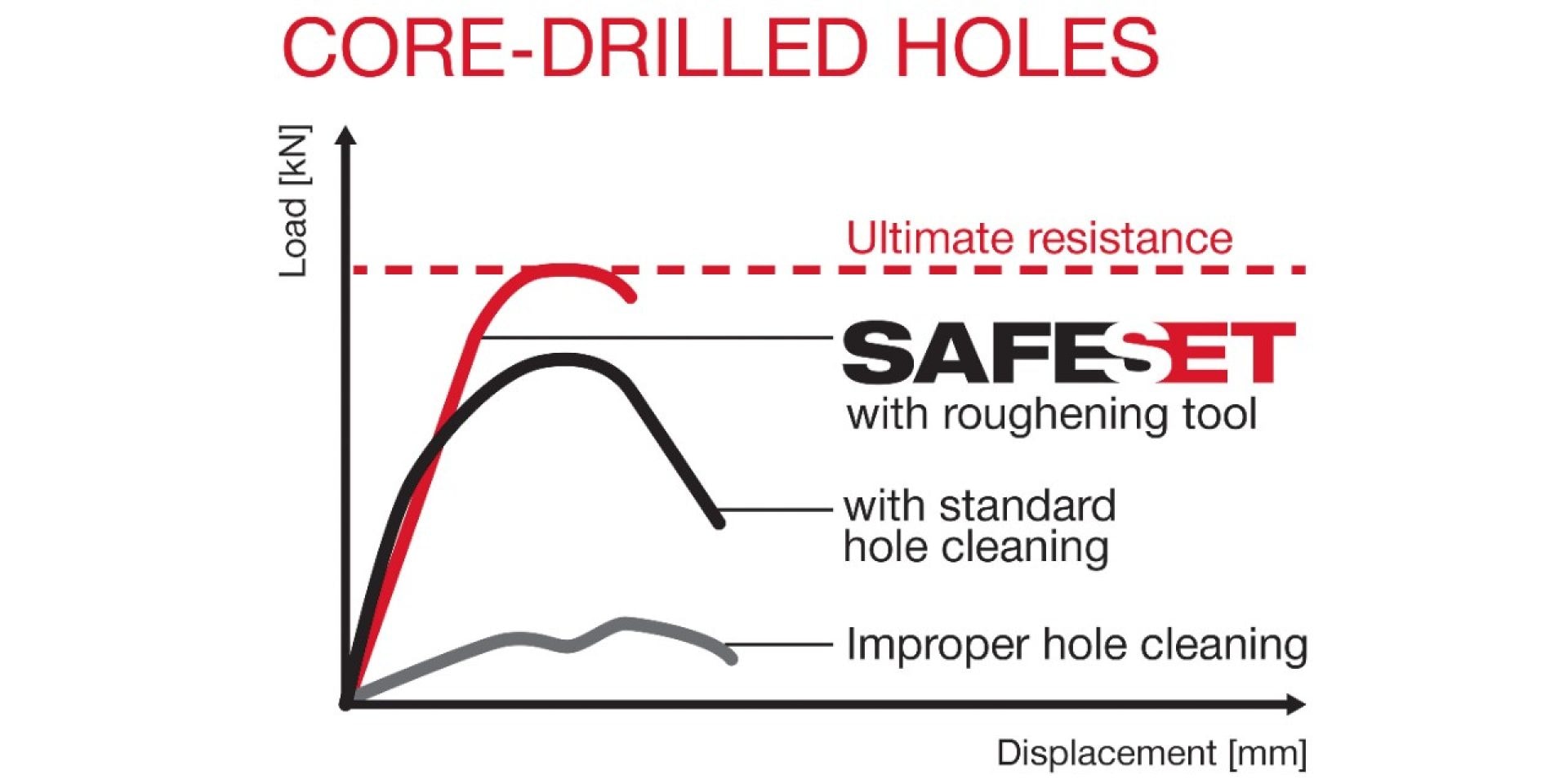

It raises the bond strength in diamond-cored holes up to that of hammer-drilled holes and reduces the amplification factor of the minimum anchorage length required by Eurocode 2 to 1.0

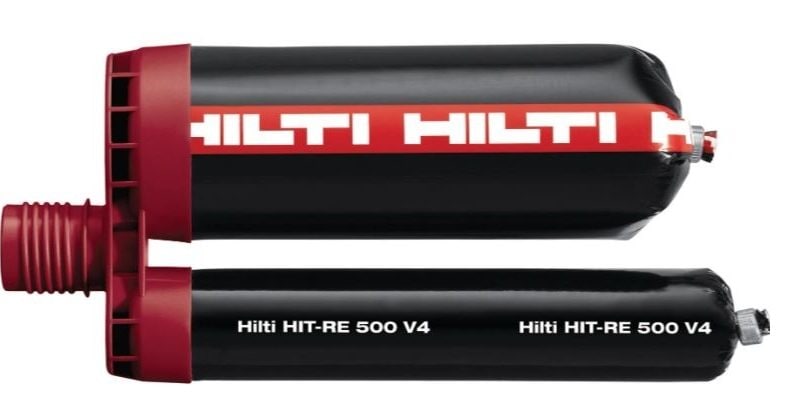

The roughening tool combined with HIT-RE 500 V3 achieves a time saving of 30% with core-drilled holes by reducing the need for cleaning.
Diamond-cored hole with and without roughening

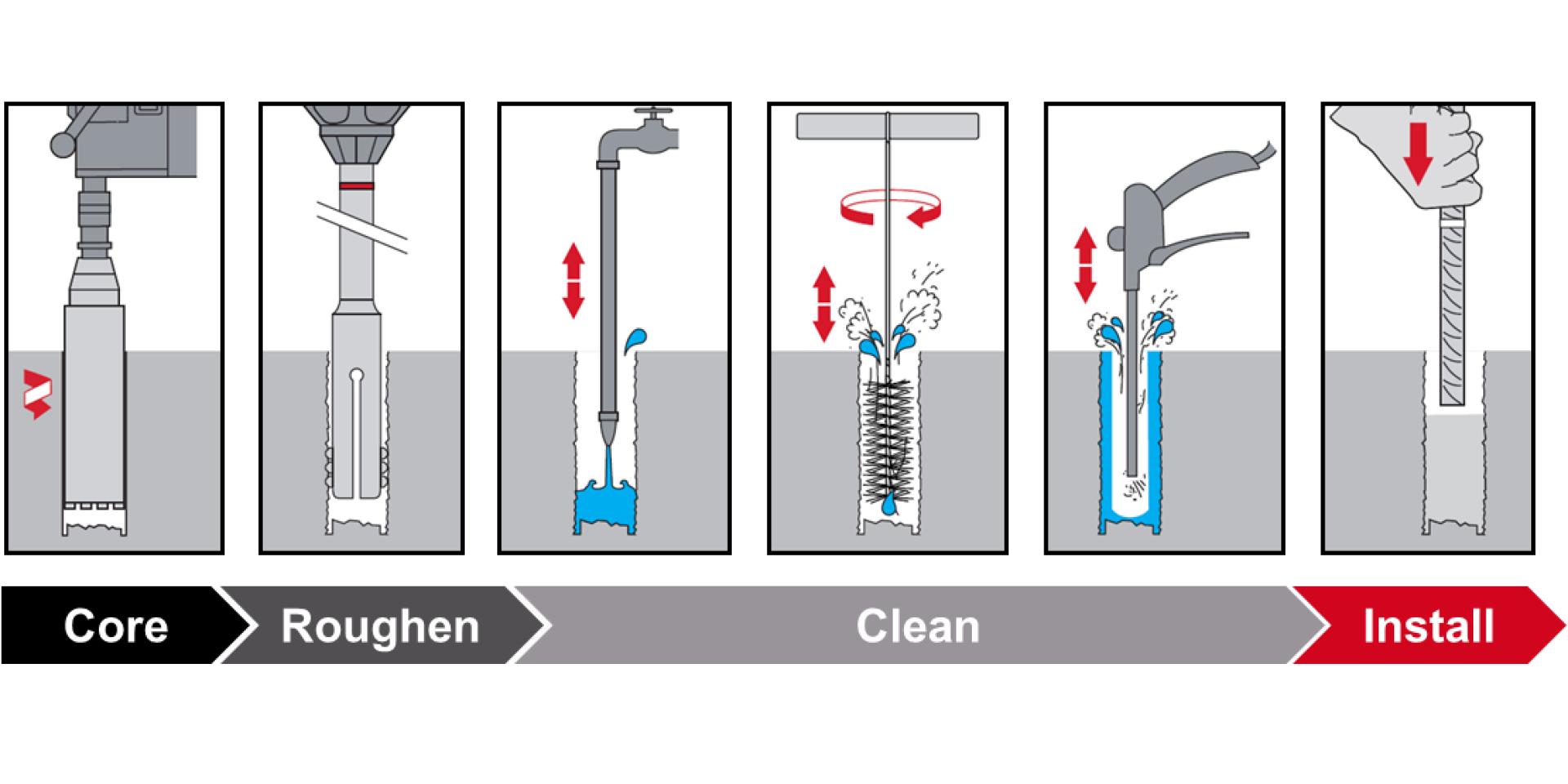

From coring to installation
