Take Measurements Digitally

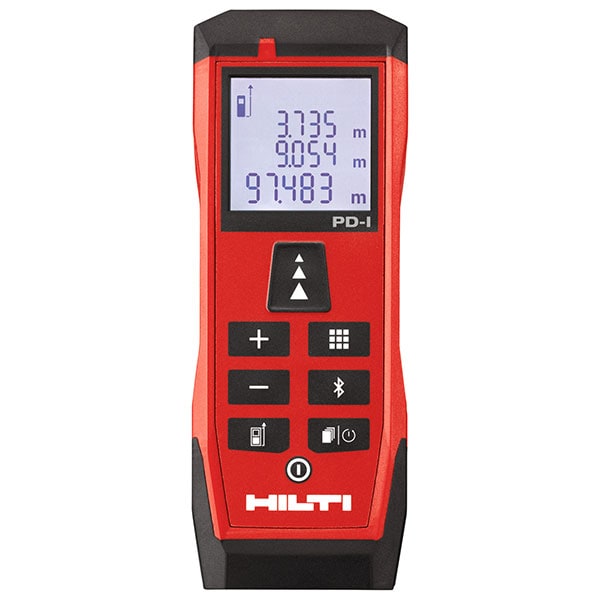

PD-I Bluetooth-enabled laser measuring tool that improves speed, accuracy and reliability

Wasting time by manually transferring measurements from sketches into a usable drawing?

Our bluetooth enabled PD-I can remove this error-prone step!

How does a Bluetooth laser meter work?

The first step in this process is using a floor plan app to rapidly create an approximate survey. This is as simple as taking photos of every corner, door and window in sequence using the app. The resulting drawing uses estimated dimensions – just about accurate enough for furniture layouts – but they need to be fine-tuned for professional use.

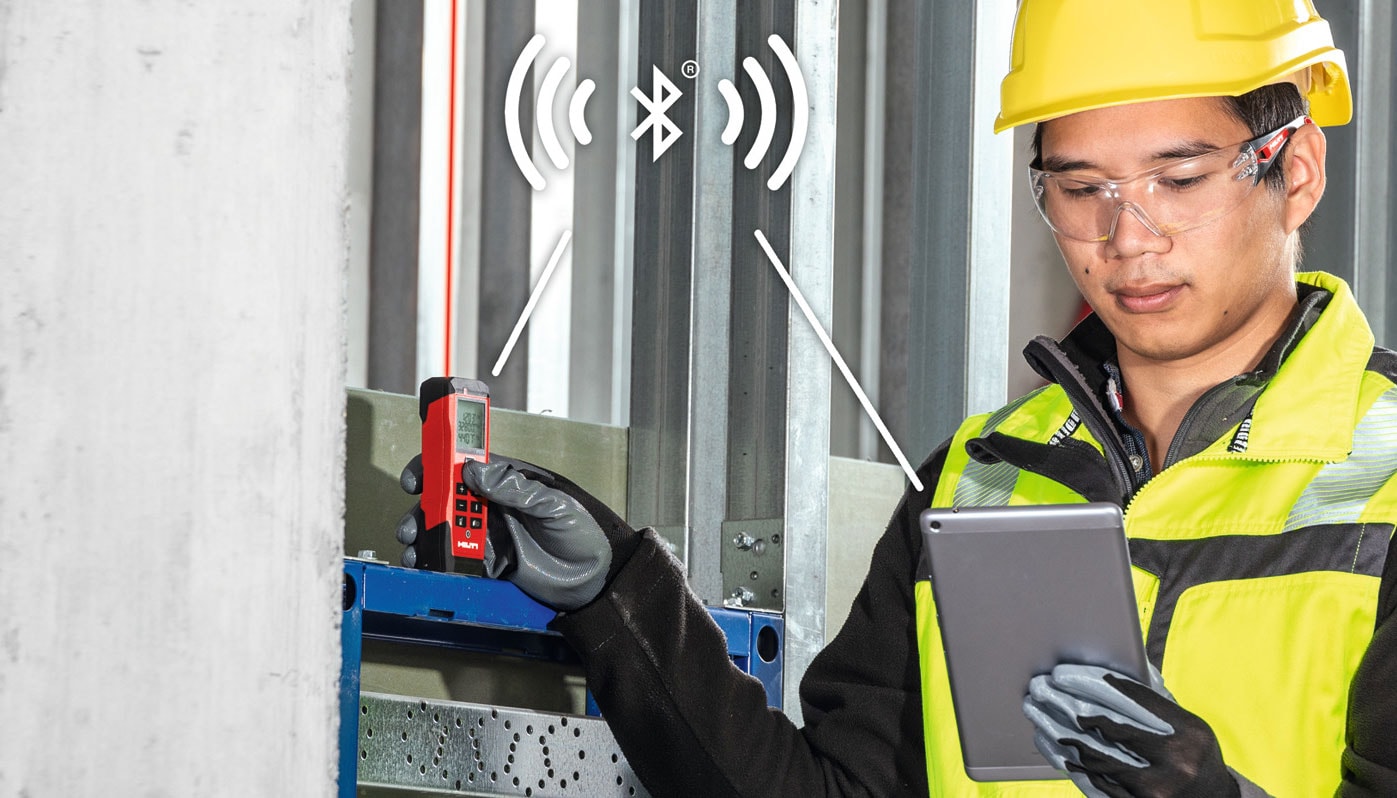

This is where the PD-I comes in. By wirelessly linking the laser to the app via Bluetooth, the drawing will update itself in real-time using measurements from the laser.

Benefit: You walk away from the survey site with a finished drawing, not just notes or a rough sketch.



Features and Benefits

  • Simple to use- point and press function
  • IP54 durability
  • Improve speed and productivity- painter's area calculation and stake-out function

COMPATIBLE FLOOR PLAN AND SURVEYING APPS

The trusted, award-winning way to create approximate floor plans simply by taking pictures with your smartphone or tablet. Connect the PD-I laser via Bluetooth to efficiently fine-tune the measurements.

WARNING: The third-party applications listed above only serve as potential add-on recommendations for Hilti`s PD-I. Hilti, however, does neither - implicitly or explicitly - warrant or guarantee Hilti`s PD-I to be compatible, suitable or being merchantable with these applications. For information regarding the compatibility, content and functionality of each of such third-party applications, please directly contact the respective application provider.

Measuring and layout tools

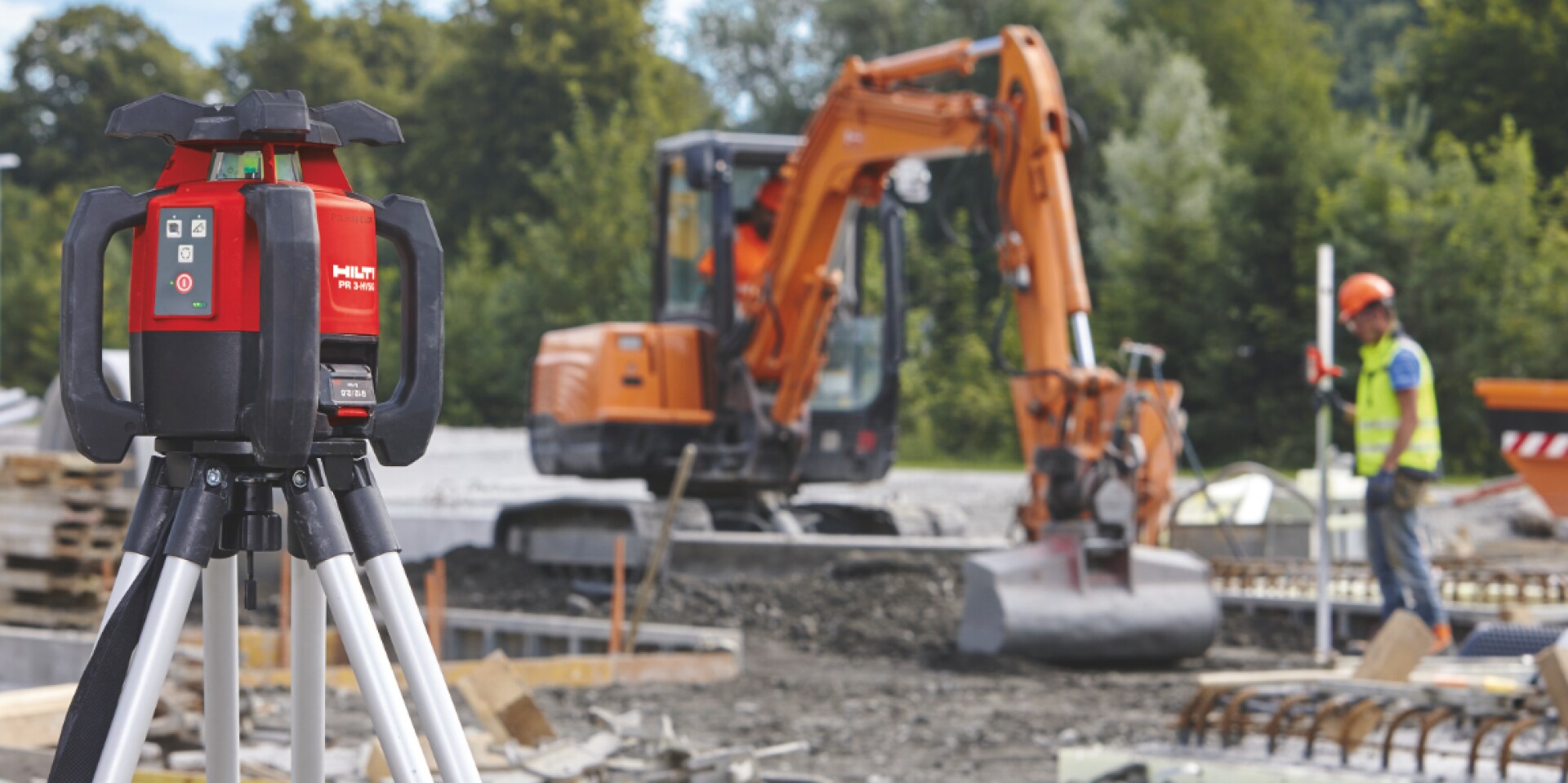

Hilti precision laser tools give you a high-productivity method for plotting lines, heights, slopes and points on the jobsite – transferring BIM/CAD design files accurately to the real world.

Find out more
PD_S Distance Measuring Tool

PD-S Distance Measurement Tool

The new PD-S fits in every pocket. You can measure short or long distance up to 60 meters quickly and accurately.

Find out more
